Vertical Stainless Steel Furniture Vacuum Coating Equipment

Brand Name : JXS

Certification : CE

Place of Origin : China

MOQ : 1 Set

Payment Terms : T/T, L/C

Supply Ability : 100 Sets/Year

Delivery Time : 60 Working Days

Packaging Details : Wooden Case, Plastic Film

Structure : Vertical Single Front Open Door

Operation Way : Touch Screen

Control System : Full Automatic

Heating System : 1 Set

Rotation Stand : 1 Set

Working Theory : Multi Arc

Contact Now

Vertical Stainless Steel Furniture Vacuum Coating Equipment

Other Configuration

Pump Group	Rotary Vane Pump+Roots Pump+Diffusion Pump
Pump Brand	Chinese
Arc Target Size	Diameter100mm x Thickness40mm
Arc Power Supply	200A
Bias Power Supply	1 Set
Vacuum Coating Colors	Gold, Rose Gold, Silver, Blue, Gray, Black, Rainbow

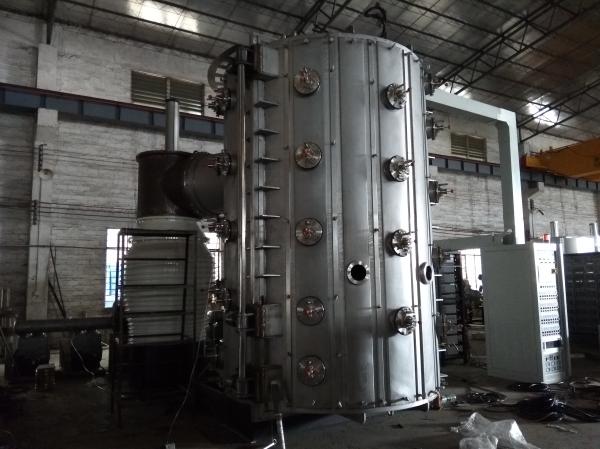

In here, vacuum coating equipment is with multi arc PVD coating technology. The technology is with high energy efficiency because of high deposition speed. Main part of vacuum coating equipment is vacuum chamber, vacuum pump and electrical cabinet. Rotary vane pump is for low vacuum pumping, then roots pump is for middle vacuum, and diffusion pump is for high vacuum. Arc target is for high quality PVD film.

Vacuum Coating Furniture

Vertical Stainless Steel Furniture Vacuum Coating Equipment

Popular stainless steel furniture vacuum coating color has gold, rose gold, gray and black. Needed accessory equipment has water tower, water pump, air compressor and oven. Every vacuum coating cycle time is 15-30 minutes.

Each new vacuum coating equipment has 1 year warranty. Beyond 1 year warranty, Foshan Jinxinsheng Vacuum Equipment will also provide lifetime technical support. Whole vacuum coating process will be trained in customer's factory.
