200A Decorative Multi Arc Titanium Nitride Coating Machine

Brand Name : JXS

Certification : CE

Place of Origin : China

MOQ : 1 Set

Payment Terms : T/T, L/C

Supply Ability : 100 Sets/Year

Delivery Time : 60 Working Days

Packaging Details : Wooden Case, Plastic Film

Vacuum Chamber Inner Size : Diameter2500mm x Height3000mm

Vacuum Chamber Material : Stainless Steel

Warranty Period : 1 Year

Control System : Full Automatic

Operation Way : Touch Screen

PLC Brand : Mitsubishi

Contact Now

China Decorative Multi Arc Titanium Nitride Coating Machine

Working Theory: Multi arc power supply high current with high heating energy is heating metal target(titanium, TiAl, etc.) into ion to react with gas(Ar, N2, C2H2, O2) to deposit metal film on products.

Other Technical Parameters List

Arc Target Size	Diameter100mm x Thickness40mm
Arc Power Supply	200A
Bias Power Supply	1 Set
Coating Colors	Gold, Rose Gold, Blue, Gray, Black, Rainbow
Main Features	Safe, Green Process, Convenient Operation, High Efficiency
Trade Terms	EXW, FOB, CIF

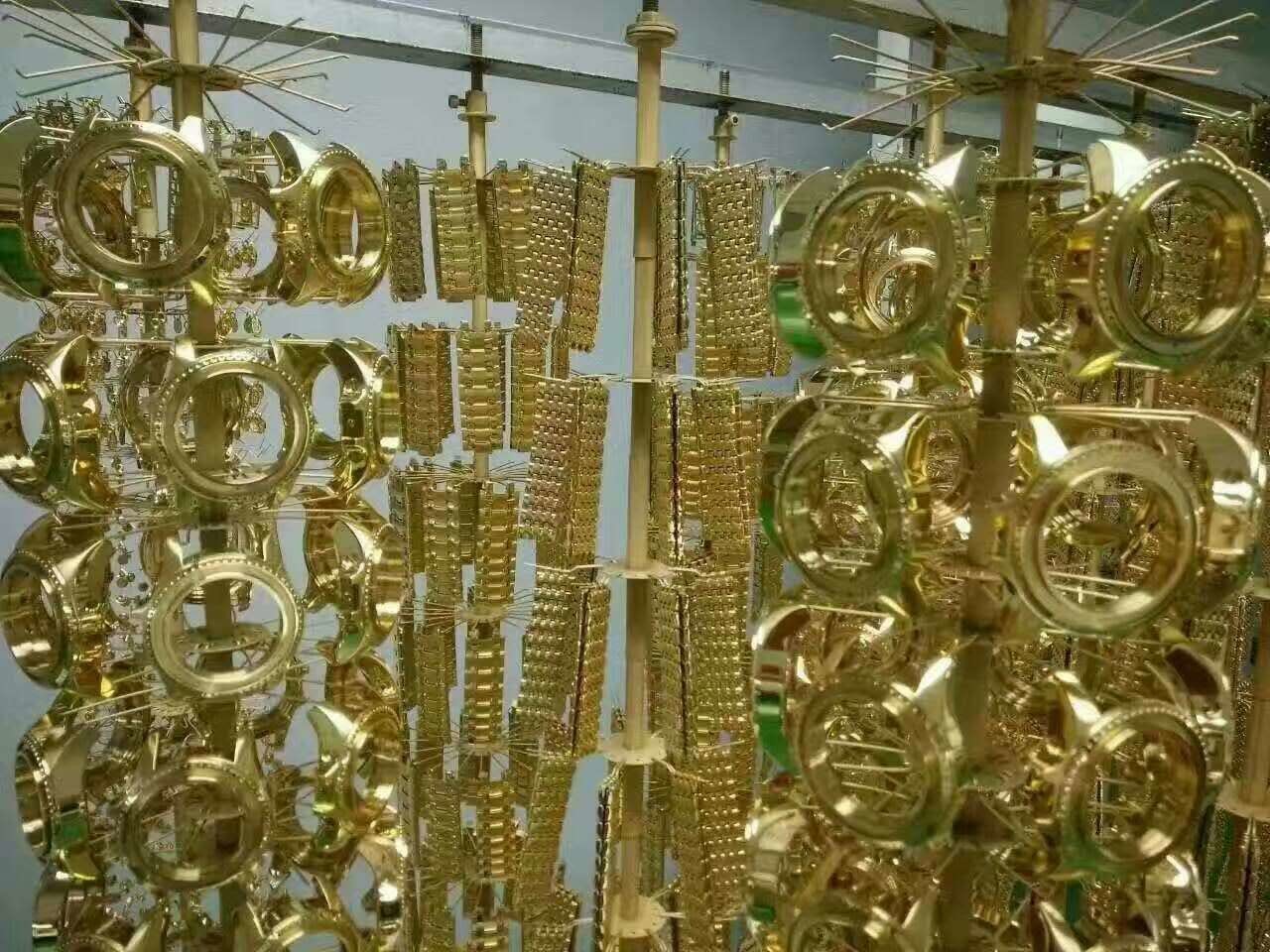

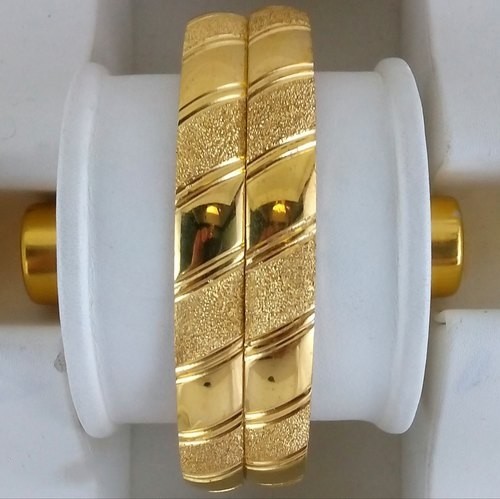

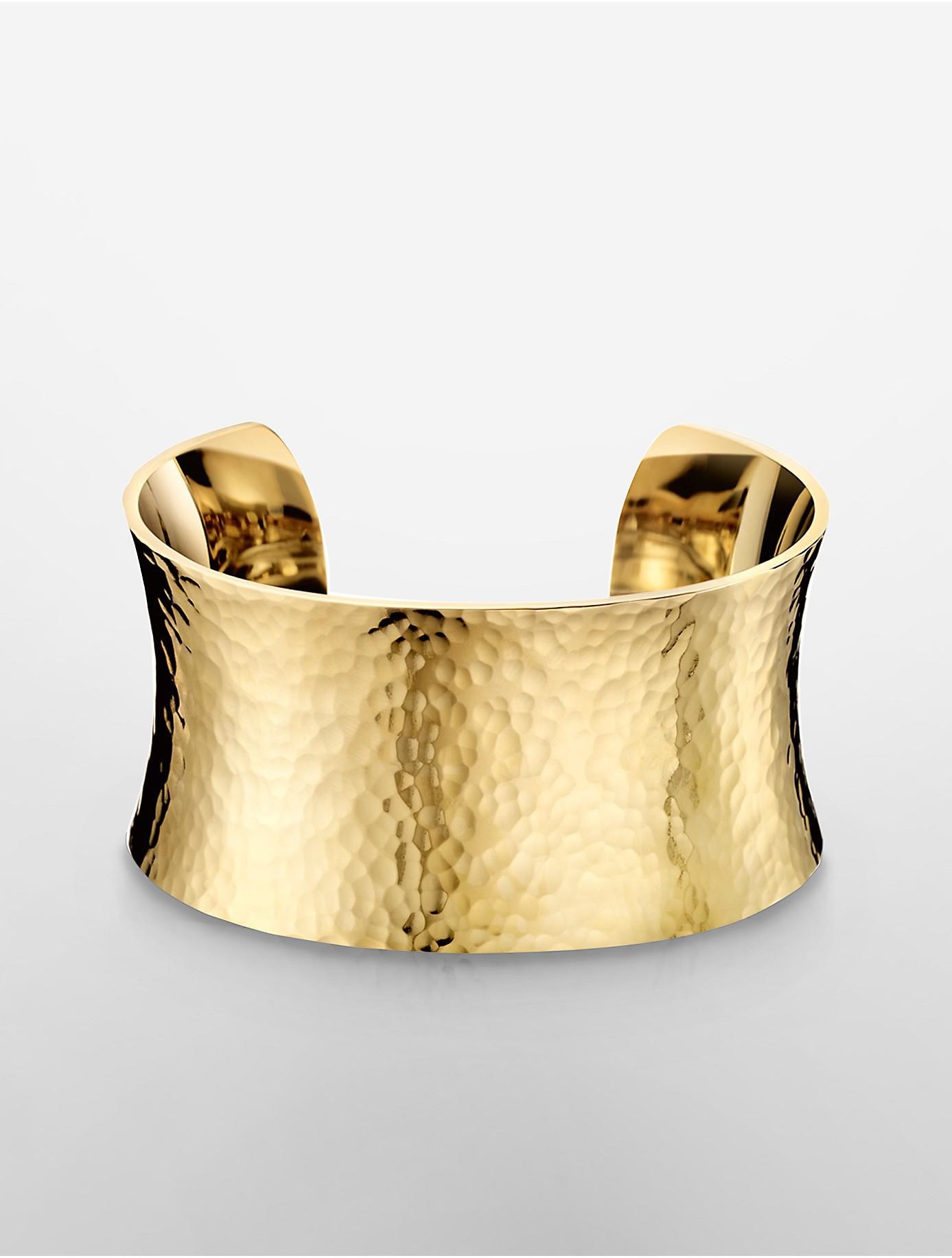

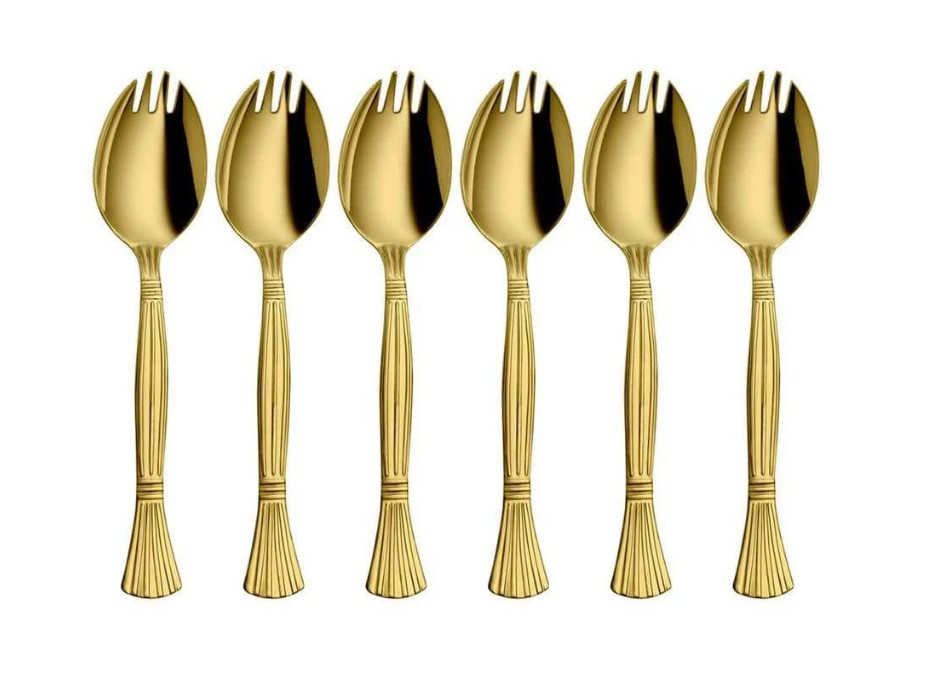

Titanium Nitride Coating Finish

200A Decorative Multi Arc Titanium Nitride Coating Machine

Titanium Nitride=TiN=Gold Color

Each coating cycle time of decorative multi arc PVD coating is 15-30 minutes. Whole coating process includes cleaning, baking, coating, packing 4 main steps. Every step needs to be careful because every step will affect coating quality.

FAQ

Q: What is the max product size can be coated by such machine?

A: 7 meter.

Q: 1 machine can coat only 1 color?

1 machine can coat gold, rose gold, blue, silver, gray, black, rainbow total 7 popular colors.

Q: Except PVD machine, any other accessory equipment?

A: Water tower, water pump, air compressor, oven.
