Stainless Steel Door Hardware PVD Vacuum Coating Equipment

Brand Name : JXS

Certification : CE

Place of Origin : China

MOQ : 1 Set

Payment Terms : T/T, L/C

Supply Ability : 100 Sets/Year

Delivery Time : 60 Working Days

Packaging Details : Wooden Case, Plastic Film

Vacuum Chamber Inner Size : Custom Made

Vacuum Chamber Material : Stainless Steel

Pump Group : Rotary Vane Pump+Roots Pump+Diffusion Pump

Pump Brand : Chinese

Arc Target Size : Diameter100mm x Thickness40mm

Arc Power Supply : 200A

Bias Power Supply : 1 Set

Contact Now

High Efficiency Stainless Steel Door Hardware PVD Equipment Cost

PVD Equipment Other Technical Parameters

PVD Coating Colors Gold, Rose Gold, Silver, Blue, Gray, Black, Rainbow
Accessory Equipment Water Tower, Water Pump, Air Compressor, Oven
Main Features Green Process, High Energy Efficiency, Safe, Easy Operation
PVD Coating Technology Cathodic Arc Or Multi Arc
Whole PVD Coating Process Cleaning, Baking, Coating, Inspecting & Packing
Each Cycle Process Time 15-30 Minutes

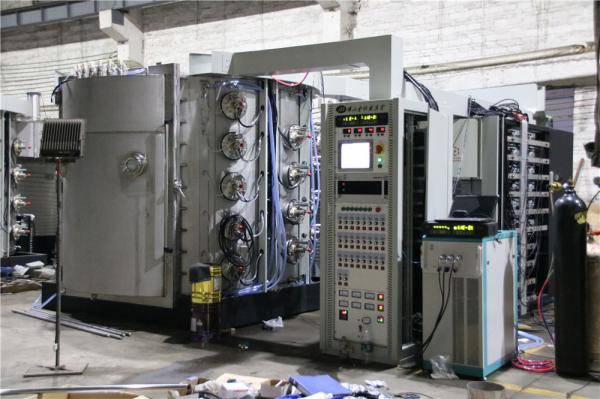

Main parts of PVD equipment are vacuum chamber, vacuum pump and electrical cabinet. Vacuum chamber is made by stainless steel, vacuum pumps are combined by mechanical pumps, roots pump and diffusion/turbo pump, electrical cabinet is controlled by Mitsubishi PLC with full automatic/semi-auto and manual control mode.

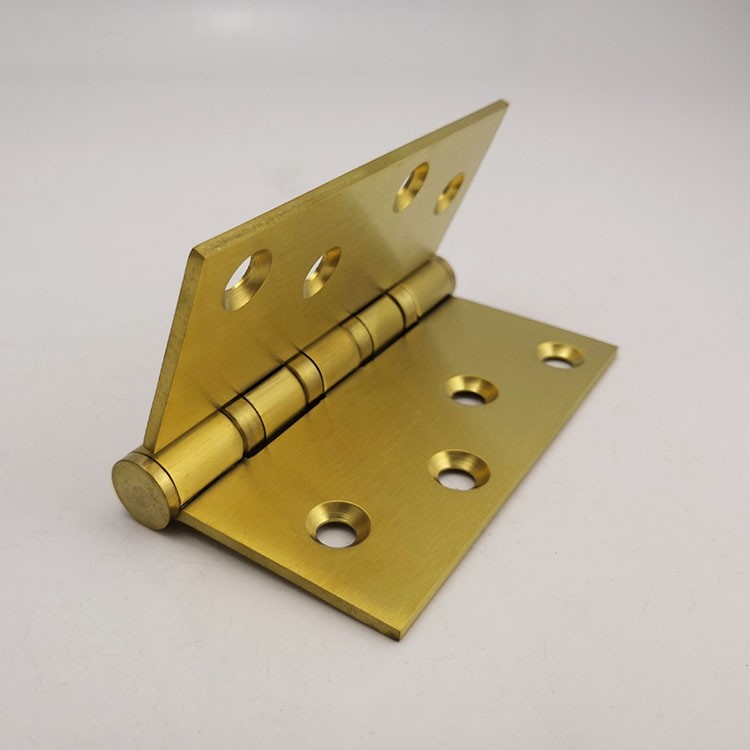

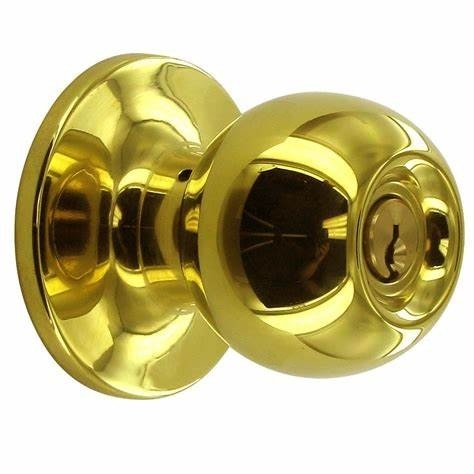

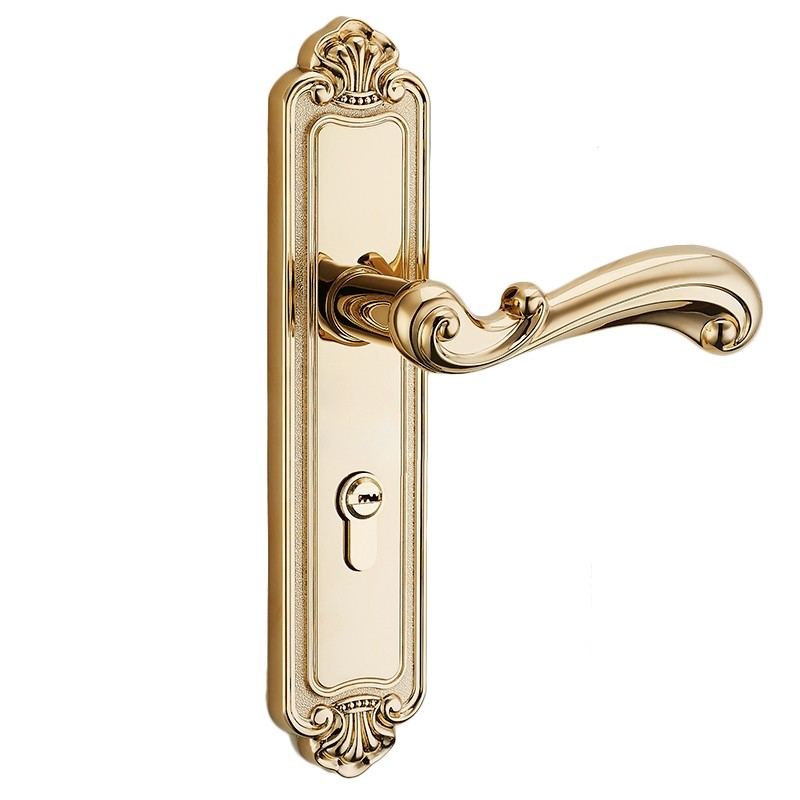

PVD Coating Door Hardware

Stainless Steel Door Hardware PVD Vacuum Coating EquipmentStainless Steel Door Hardware PVD Vacuum Coating EquipmentStainless Steel Door Hardware PVD Vacuum Coating Equipment

In PVD coating door hardware, popular PVD color has gold, rose gold, gray and black. Such colors are used widely in hotel and high end living house. Except shiny colors, PVD film offers longer using life to door hardware.

1 PVD equipment can also coat tableware, sanitary ware, glassware and ceramic products. We just need to focus on 1 main product type, such as metal, ceramic or glass material.
