Front Loading Stainless Steel Furniture PVD Plating Equipment

Brand Name : JXS

Certification : CE

Place of Origin : China

MOQ : 1 Set

Payment Terms : T/T, L/C

Supply Ability : 100 Sets/Year

Delivery Time : 60 Working Days

Packaging Details : Wooden Case, Plastic Film

Structure : Vertical Single Front Open Door

Vacuum Chamber Inner Size : Custom Made

Vacuum Chamber Material : Stainless Steel

Pump Group : Rotary Vane Pump+Roots Pump+Diffusion Pump

Pump Brand : China

Heating System : 1 Set

Contact Now

1 Year Guarantee Front Loading Stainless Steel Furniture PVD Plating Equipment

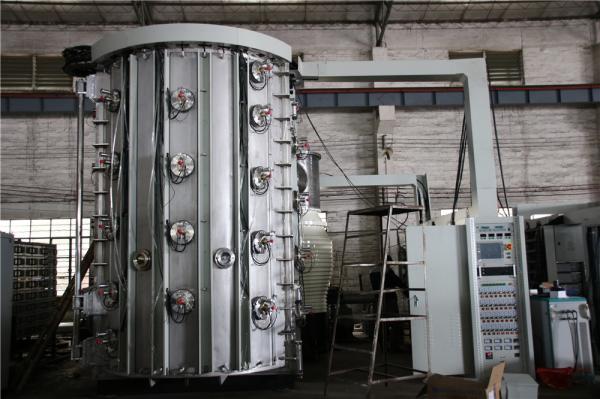

PVD plating equipment main part has vacuum chamber, vacuum pump and electrical cabinet. As for stainless steel furniture, we will use multi arc PVD coating technology. That technology is with high deposition speed for large scale PVD coating. Vacuum chamber material is stainless steel and inner size can be custom made. Vacuum pump group is rotary vane pump+roots pump+diffusion pump for high efficiency vacuum pumping.

Other Technical Data

Rotation Stand	1 Set
Arc Target Size	Diameter100mm x Thickness40mm
Arc Power Supply	200A
Bias Power Supply	1 Set
PVD Plating Colors	Gold, Rose Gold, Silver, Blue, Gray, Black, Rainbow
Accessory Equipment	Air Compressor, Water Tower, Water Pump, Oven

Popular PVD color for furniture is gold, rose gold, gray and black. Each PVD plating cycle time is about 15-30 minutes. Whole PVD plating process is cleaning, baking, coating, inspecting and packing. After PVD plating, stainless steel furniture will show nice decorative colors for higher selling value. Strong PVD plating film adhesion will increase furniture using life.

PVD Plating Furniture

Front Loading Stainless Steel Furniture PVD Plating Equipment

All process details including PVD plating equipment operation will be provided by Foshan Jinxinsheng Vacuum Equipment in customer's factory. What's more, we will teach PVD plating equipment simple maintenance skill. As for new equipment, each equipment has 1 year quality guarantee. Beyond 1 year, lifetime technical support will be offered.
